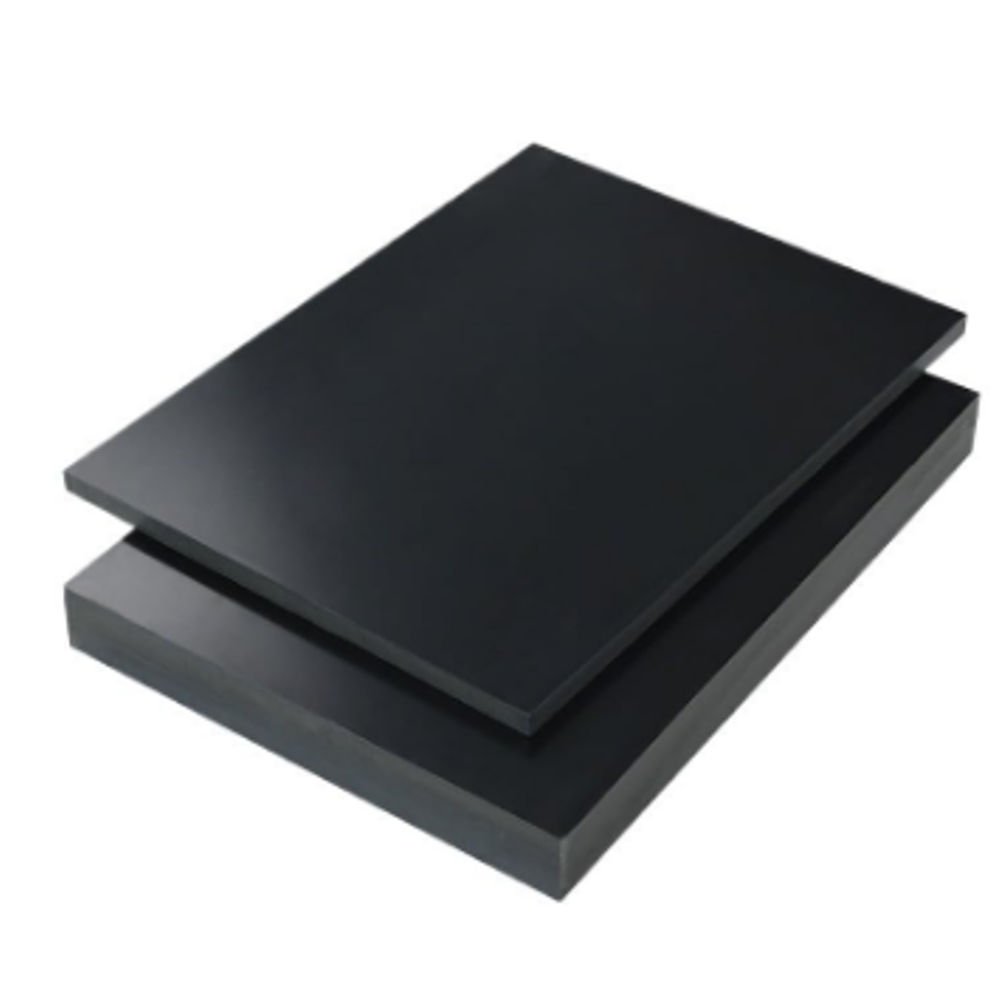

ESD / ANTISTATIC BAKELITE SHEETS
Product Description
ESD / Antistatic Bakelite Sheet is made by adding anti-static agents during the production of Bakelite sheet, giving it the best antistatic performance. The substrate is phenolic resin with electrical grade bleached wood pulp paper.
It provides a uniform anti-static value, with surface and volume resistivity of 106 – 109 Ω, and the antistatic value does not change after machining or surface grinding.
Features
- • Extremely stable anti-static properties
- • Good mechanical strength
- • Good intermediate electrical insulation, non-conductive
- • Resistance to organic solvents
- • Antistatic value unchanged after machining or surface grinding
Sizes Available
- • Sheet thickness available from: 3mm to 30mm
- • Sizes available in sheets: 1020mm x 1220mm, 1030mm x 2070mm, 1220mm x 2060mm
- • Colour: Black
Typical Application
- Mobile phone test fixtures
- SMT technology countertops
- PCB drilling
- Semiconductor test fixtures
- Semiconductor crystal manufacturing equipment parts
- Wafer processing jigs
- Hard disk drive parts
- High precision automated fixtures
- Electronic equipment installation and fixtures
Products
Sheets
Specification
| Product | Thickness | Colour | Size |
|---|---|---|---|
| Bakelite Sheets | 3 – 30mm | Black | 1020 x 1220mm, 1030 x 2070mm, 1220 x 2060mm |
Customize thickness & size as per customer requirement
